Lightweight Portable Brushless Folding Foldable Electric Power
Wheelchair
Model DYN200 ( E08L )
Description
We are Changshu Pingfang Wheelchair Co., Ltd. We are wheelchair
manufacturer. We mainly produce light weight and can folding very
small electric wheelchair. We have a professional design team,
procurement team, production team, sales team and after-sales team.
Our foldable electric scooter power wheelchair is extremely
convenient due to its compact size and ability to be folded for
transport in just about any vehicle: a Car, Truck, SUV. It is also
convenient enough to take on an Train, Bus, Cruise Ship or
Airplane. The chair can go just about anywhere - Indoors or
Outdoors.
We also have many optional accessorie for meet the different needs
of different customers. Functions not only can be met at any time,
but also can be combined according to customer requirements.
The product specifications you cared most
| Model Number | DYN200 ( E08L ) | Type | Elecctric Wheelchair |
| Net Weight | 21.5 KG / 47.40 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM / 11.16mi Or 36KM / 22.32mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg / 275lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W * 2 brushless motor |
| Unfolded(LxWxH) size | (100-112)x60.5x(81-93)cm / (39.37" - 44.09")*23.82" *(31.89"- 36.61") Length and height can be adjust | Seat Size | 40 * ( 46 - 50 ) * 6cm / 15.75" * (1 8.11" - 19.69" ) * 2.36" Seat width can be adjustable |
| Folded Size | 60*36.5*71cm / 23.62" *14.37" * 27.95" | Packing Dimension | 67 * 40.5 * 82cm / 26.38" * 15.94" * 32.28" |
| Front Wheel | 7” * 2 PU Tyre
or 8” * 2 Pneumatic tyres | Rear Wheel | 10” Solid Wheel |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100 - 240 VAC 50 / 60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Silver |
* Error and uncertainty in measurement
Packaging
| Individual Package Weight | 30kg / 66.13lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) | 67 * 40.5 * 82 cm / 26.38" * 15.94" * 32.28" | # of 20'' container | 119pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 238pcs |
* Error and uncertainty in measurement
Advantage
Aluminum electric wheelchairs can be folded very small to put into
the car trunk and other narrow space.
Frame N.W 21.5KG / 47.40lbs.
Battery can be quick-relaese, battery weight is 1.5KG / 3.31lbs.
Backrest can be height adjustable.
Backrest can be 3 position ( 3 different angle ) adjustable.
Seat width can be adjusted in 3 sizes.
Joystick can be right & left adjustable.
Motor wheel can 8 inch and 10 inch adjustable.
Footrest length can length adjustable.
Seatrest & backrest cushion can be degree of tightness adjustable for users more comfortable.
Lithium ion battery can be quick-released (removable without any
tools).
Seatrest & backrest cushion can be removable for cleaning.
Footrest can be removable.
Wheelchair Details
Electric wheelchair, different from the traditional manual
wheelchair, is an upgrading one which is equipped with the
high-powered actuating device, intelligent manipulation device,
lithium batteries and so on.Electric wheelchair is a high-tech
product which possesses the intelligent controller that can
complete the actions as forward, reverse, turning around. One key
easy folding, can be carried as lugguage.

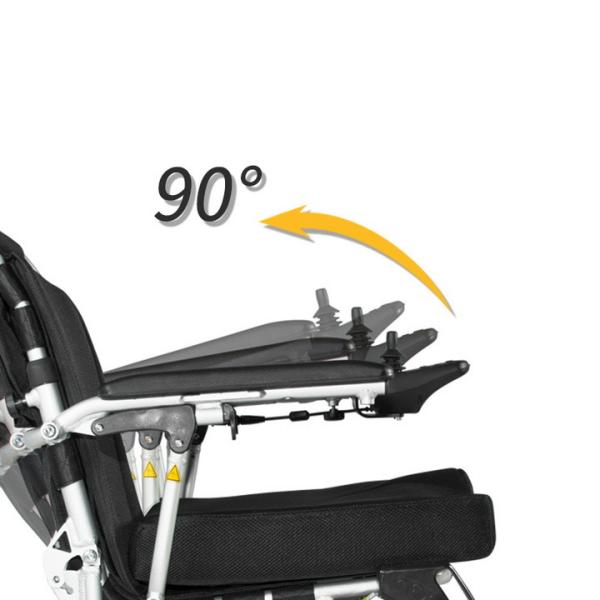

Joystick can be mounted for left or right-hand use.
Anti-tip device is for safety traveling uphill.
Arm rests can be lift up for convenient access.
Electromagnetic brakes engage automatically when joystick is took
off.
