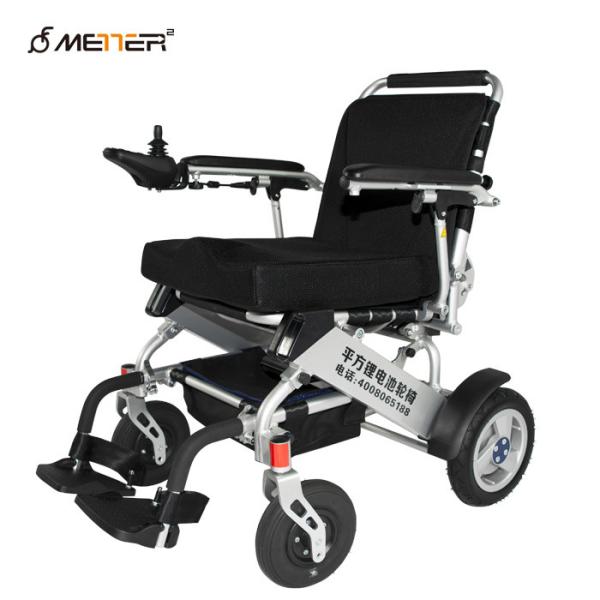

Lightweight Aluminum Handicapped Foldable Power Electric Wheelchair
With Brushless Motor
Model DYN200 ( E08L )
Description
Pingfang ultra-light electric wheelchair is exquisite and
exquisite, occupying only 0.14m3 after folding, which is convenient
for daily storage and carrying. Pingfang ultra-light electric
wheelchair is a brand new technology, solar energy low-carbon
concept in the electric wheelchair breaking the use of the concept
of economic and environmental protection, ultra-light portable
design makes this model become one of the world's most lightweight
electric wheelchair, in use can be charged at any time.
Pingfang ultra light electric wheelchair adopts hub type brushless
motor, which can save electricity, save energy, and have a longer
driving range, making your trip more comfortable. One-button quick
belt folding, income comfortable, operation brief.The use of
brushless motor makes the vehicle's energy conversion efficiency
greatly improved, and then enhances the range of the
vehicle;Aluminum frame, front and back folding structure;Up and
down can be turned up type handrails, adjustable before and after
the safety of the handle.
Pingfang ultra-light folding electric wheelchair, for your travel,
to make a further development!
Advantage
Aluminum electric wheelchairs can be folded very small to put into
the car trunk and other narrow space.
Frame N.W 21.5KG / 47.40lbs.
Battery can be quick-relaese, battery weight is 1.5KG / 3.31lbs.
Backrest can be height adjustable.
Backrest can be 3 position ( 3 different angle ) adjustable.
Seat width can be adjusted in 3 sizes.
Joystick can be right & left adjustable.
Motor wheel can 8 inch and 10 inch adjustable.
Footrest length can length adjustable.
Seatrest & backrest cushion can be degree of tightness adjustable for users more comfortable.
Lithium ion battery can be quick-released (removable without any
tools).
Seatrest & backrest cushion can be removable for cleaning.
Footrest can be removable.
The product specifications you cared most
| Model Number | DYN200 ( E08L ) | Type | Elecctric Wheelchair |
| Net Weight | 21.5 KG / 47.40 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM / 11.16mi Or 36KM / 22.32mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg / 275lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W * 2 brushless motor |
| Unfolded(LxWxH) size | (100-112)x60.5x(81-93)cm / (39.37" - 44.09")*23.82" *(31.89"- 36.61") Length and height can be adjust | Seat Size | 40 * ( 46 - 50 ) * 6cm / 15.75" * (1 8.11" - 19.69" ) * 2.36" Seat width can be adjustable |
| Folded Size | 60*36.5*71cm / 23.62" *14.37" * 27.95" | Packing Dimension | 67 * 40.5 * 82cm / 26.38" * 15.94" * 32.28" |
| Front Wheel | 7” * 2 PU Tyre
or 8” * 2 Pneumatic tyres | Rear Wheel | 10” Solid Wheel |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100 - 240 VAC 50 / 60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Silver |
* Error and uncertainty in measurement
Packaging
| Individual Package Weight | 30kg / 66.13lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) | 67 * 40.5 * 82 cm / 26.38" * 15.94" * 32.28" | # of 20'' container | 119pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 238pcs |
* Error and uncertainty in measurement
Advantage
1. Lightweight: only weighs 23kg
2. Small folded size:60.5 x 36.5x 74.0 CM, easy to put in the car
trunk or co-pilot's seat.
3. Quick and easy folding procedure: 5-second operation.
4. Adjustable armrest and footrest: offer you a comfortable life
5. 7" shock absorbing front casters
6. Detachable and washable backrest and seat cushion
7. Tiny-Turn Radius for tight corners, makes you ride more stable
Optional Accessories For Different Requirements
Headrest
Material comfort. Excellent softness and air permeability, and can
effectively relieve cervical fatigue during driving.
Orthopaedic Legrest
There is a comfortable spongy-filled shelf at the lower leg. Sponge
- filled shelf height is adjustable to suit users of different
heights. The Angle of legrest is adjustable and can be adjusted
according to the user's comfort level. The length of the legrest
can be adjusted according to the length of the user's leg. You can
always take it off if you don't want to use it.
Luggage Trailer
It is convenient for users to put luggage or shop in the
supermarket.
