Lightweight Aluminum Foldable Power Electric Wheelchair
Model DYN200 ( E08L )
Description
At present, the elderly choose to travel more and more, take a rip
around the world, It is the dream of many old people when they are
young. Now They are retired, Make this dream come true while you
can still walk. After all, the elderly are not young people, short
walks are ok, long distance is not possible, travel. If can have a
portable electric wheelchair, that would be much better. Got off
the plane or out of the high-speed rail, directly sit in the
electric wheelchair driving their own electric wheelchair, is it a
very interesting thing! However, due to the current aviation
regulations, many with battery equipment can't carry on a plane,
also including some electric wheelchair, only to satisfy the
standard of civil aviation battery capacity electric wheelchair is
allowed to carry on the plane, so choose a folding electric
wheelchair can be on a plane, for many elderly people is very
necessary.

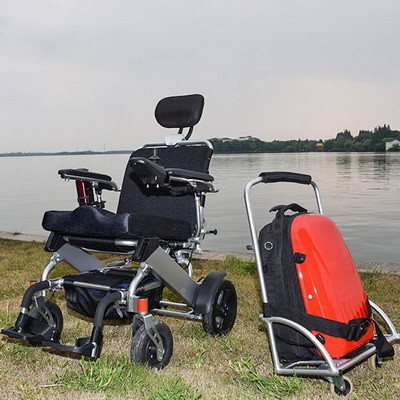

The wheelchair is very lightweight and portable. It is suitable for
most car boots can be put into it when you are traveling. And after
it folded, you can take it like a luggage to go anywhere freely.
The wheelchair is equipped with two pieces lithium batteries and
permit to carry to airplane, train, metro, bus and taxi etc.
Green environmental protection, regardless of production, use and
scrap, do not contain or produce any lead, mercury, cadmium and
other toxic and harmful heavy metal elements and substances.
The product specifications you cared most
| Model Number | DYN200 ( E08L ) | Type | Elecctric Wheelchair |
| Net Weight | 21.5 KG / 47.40 lbs | Battery Weight | 1.5 KG / 3.31 lbs |
| Distance | 18KM / 11.16mi Or 36KM / 22.32mi | Maximun Speed | 6KM/H |
| Load Capacity | 125kg / 275lb | Charge Time | 5h |
| Battery Capacity | 24V 8AH Or 24V 16AH | Motor | 150W * 2 brushless motor |
| Unfolded(LxWxH) size | (100-112)x60.5x(81-93)cm / (39.37" - 44.09")*23.82" *(31.89"- 36.61") Length and height can be adjust | Seat Size | 40 * ( 46 - 50 ) * 6cm / 15.75" * (1 8.11" - 19.69" ) * 2.36" Seat width can be adjustable |
| Folded Size | 60*36.5*71cm / 23.62" *14.37" * 27.95" | Packing Dimension | 67 * 40.5 * 82cm / 26.38" * 15.94" * 32.28" |
| Front Wheel | 7” * 2 PU Tyre
or 8” * 2 Pneumatic tyres | Rear Wheel | 10” Solid Wheel |
| Joystick | Left, Right or Backrest***** | Cushion | Removable |
| Charger Input | 100 - 240 VAC 50 / 60Hz | Grade Ability | 10° |
| Anti-tip device | Yes | Seat Belt | Yes |
| Tools | Yes | Flip-up Armrest | Yes |
| Battery type | Lithium Ion Battery | Color | Silver |
* Error and uncertainty in measurement
Advantage
Aluminum electric wheelchairs can be folded very small to put into
the car trunk and other narrow space.
Frame N.W 21.5KG / 47.40lbs.
Battery can be quick-relaese, battery weight is 1.5KG / 3.31lbs.
Backrest can be height adjustable.
Backrest can be 3 position (3 different angle) adjustable.
Seat width can be adjusted in 3 sizes.
Joystick can be right & left adjustable.
Motor wheel can 8 inch and 10 inch adjustable.
Footrest length can length adjustable.
Seatrest & backrest cushion can be degree of tightness adjustable for users more comfortable.
Lithium ion battery can be quick-released (removable without any
tools).
Seatrest & backrest cushion can be removable for cleaning.
Footrest can be removable.
Packaging
| Individual Package Weight | 30kg / 66.13lb | # of PCS /Master Carton | 1pc |
| Individual Package Dimension (L*W*H) | 67 * 40.5 * 82 cm / 26.38" * 15.94" * 32.28" | # of 20'' container | 119pcs |
| Packing | Carton All sides of the interior are protected by pearl cotton | # of 40'' container | 238pcs |
* Error and uncertainty in measurement
